C

Denky D4 Antenne Externe via connecteur uFL

denky ufl antenne externe • • Charles

1

1
Posts

2.6k
Views

No one has replied
C

Tasmota Auto Reboot

• • Charles

3

3
Posts

215
Views

N

@Charles very smart !
C

Procedure de flash du firmware Denky D4

denky firmware flash procedure • • Charles

26

26
Posts

949
Views

F

J'ai parlé un peu vite, EDF a repassé le Linky en mode standard, et teleinfo n'arrive pas à interpréter les messages.

Cela dit il envoie quand-même les messages TIC sur MQTT, donc ça devrait le faire...

Ci-dessous un message TIC complet tel que loggé par "RSL: SENSOR", qui je suppose est le plus bas niveau. L'objet "TIC" contient plusieurs clés en double, c'est peut-être ce qui cause le pb?
08:31:18.904 RSL: SENSOR = {"Time":"2024-02-13T08:31:18","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083119","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427786","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056158","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460545","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911981","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"236","URMS2":"240","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00471","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911981","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"236","URMS2":"240","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00478","SINSTS1":"00100","SINSTS2":"00233","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000"}} 08:33:01.888 CMD: energyconfig stats 08:33:01.890 - Messages : 54 08:33:01.891 - Cos φ : 6 08:33:02.013 - Erreurs : 53 08:33:02.014 - Reset : 0 08:31:25.276 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:25","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083119","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427786","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056158","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460545","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911981","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460545","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911981","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"239","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00485","SINSTS1":"00099","SINSTS2":"00242","SINSTS3":"00144","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00"}} 08:31:27.102 TIC: Error [EASF07 0000000 002422447 T] 08:31:28.277 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:28","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083129","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427786","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056158","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911982","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00490","SINSTS1":"00100","SINSTS2":"00245","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:31:29.649 MQT: teleinfo/tele/STATE = {"Time":"2024-02-13T08:31:29","Uptime":"0T00:01:14","UptimeSec":74,"Heap":141,"SleepMode":"Dynamic","Sleep":50,"LoadAvg":308,"MqttCount":1,"Berry":{"HeapUsed":3,"Objects":38},"POWER":"OFF","Dimmer":10,"Color":"1A1A1A","HSBColor":"0,0,10","Channel":[10,10,10],"Scheme":0,"Width":1,"Fade":"OFF","Speed":1,"LedTable":"ON","Wifi":{"AP":1,"SSId":"LongJarret","BSSId":"7C:C1:77:90:48:F0","Channel":1,"Mode":"11n","RSSI":30,"Signal":-85,"LinkCount":1,"Downtime":"0T00:00:02"}} 08:31:30.272 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:30","ENERGY":{"TotalStartTime":"2024-02-13T06:27:57","Total":0.007,"Yesterday":0.000,"Today":0.007,"Period":[2,4,2],"Power":[71,173,102],"ApparentPower":[100,245,145],"ReactivePower":[70,174,103],"Factor":[0.71,0.71,0.70],"Voltage":[237,238,237],"Current":[0.4,1.0,0.6]}} 08:31:30.682 TIC: Error [EASD02 0128924004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE .] 08:31:30.815 TIC: Error [EASFSMAXIN-1 H240212123212 01039 D] 08:31:31.319 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:31","ALERT":{"Load":0,"Volt":0,"Preavis":2,"Label":"PM"}} 08:31:32.323 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:32","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083132","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911983","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"238","URMS2":"237","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00473","SINSTS1":"00100","SINSTS2":"00229","SINSTS3":"00144","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000"}} 08:31:33.314 TIC: Error [STGE 423ACD01J] 08:31:35.289 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:35","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083135","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911983","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"238","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00475","SINSTS1":"00100","SINSTS2":"00230","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911983","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"238","URMS2":"237","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00470","SINSTS1":"00100","SINSTS2":"00226"}} 08:31:38.282 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:38","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083138","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911983","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00475","SINSTS1":"00100","SINSTS2":"00230","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:31:40.011 TIC: Error [SMAXSN1-1 H240212233916 02003 DINSTS3 00145 C] 08:31:40.612 TIC: Error [SMAXSN3-1 H240212055736 025 <] 08:31:41.283 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:41","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083141","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911983","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00477","SINSTS1":"00100","SINSTS2":"00232","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:31:42.645 TIC: Error [SMAXSN85 9] 08:31:44.293 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:44","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083144","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911983","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"237","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00478","SINSTS1":"00100","SINSTS2":"00232","SINSTS3":"00146","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911984","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00471","SINSTS1":"00099","SINSTS2":"00227","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000"}} 08:31:45.900 TIC: Error [UR118 6] 08:31:47.292 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:47","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083147","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911984","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"237","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911984","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"239","URMS3":"236","PREF":"09","PCOUP":"09","SINSTS":"00470","SINSTS1":"00099","SINSTS2":"00228","SINSTS3":"00143","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237"}} 08:31:49.021 TIC: Error [EASD04 00746056159 ?] 08:31:50.301 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:50","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083147","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911984","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"239","URMS3":"236","PREF":"09","PCOUP":"09","SINSTS":"00477","SINSTS1":"00099","SINSTS2":"00234","SINSTS3":"00144","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00"}} 08:31:52.031 TIC: Error [EASF07 0000000GTF TEMPO F] 08:31:54.309 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:54","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083154","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427787","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056159","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460546","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911985","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00471","SINSTS1":"00099","SINSTS2":"00227","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","PCOUP":"09","SINSTS":"00470","SINSTS1":"00099","SINSTS2":"00227","SINSTS3":"00144","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:31:56.238 TIC: Error [CCAIUMOY1 H240213083000 238 2] 08:31:57.303 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:31:57","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083157","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911985","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00472","SINSTS1":"00099","SINSTS2":"00227","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","SMAXSN-1":"H240212234008 03888","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:31:58.898 TIC: Error [SMAXSN3-1 H24027 H] 08:32:00.324 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:32:00","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083200","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911985","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00472","SINSTS1":"00099","SINSTS2":"00228","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","PREF":"09","PCOUP":"09","SINSTS":"00478","SINSTS1":"00100","SINSTS2":"00233","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874"}} 08:32:02.243 TIC: Error [SMAX"] 08:32:03.316 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:32:03","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083203","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911985","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"238","URMS3":"236","PREF":"09","PCOUP":"09","SINSTS":"00478","SINSTS1":"00100","SINSTS2":"00233","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:32:05.002 TIC: Error [SIN0547 D] 08:32:06.280 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:32:06","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083206","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911985","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"240","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00478","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911986","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"239","URMS3":"236","PREF":"09","PCOUP":"09","SINSTS":"00480","SINSTS1":"00101","SINSTS2":"00234","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874"}} 08:32:07.886 TIC: Error [EAITF] 08:32:09.301 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:32:09","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083206","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911986","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"239","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00469","SINSTS1":"00099","SINSTS2":"00226","SINSTS3":"00144","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00"}} 08:32:11.082 TIC: Error [EASF56160 7] 08:32:13.305 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:32:13","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083213","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911986","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"237","URMS2":"239","URMS3":"237","PREF":"09","PCOUP":"09","SINSTS":"00474","SINSTS1":"00100","SINSTS2":"00229","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}} 08:32:15.114 TIC: Error [CCAIN H2402130CASN H240213083000 00238 ?] 08:32:16.288 MQT: teleinfo/tele/SENSOR = {"Time":"2024-02-13T08:32:16","TIC":{"ADSC":"031776087520","VTIC":"02","DATE":"H240213083216","NGTF":"TEMPO","LTARF":"HP BLANC","EAST":"031427788","EASF01":"024921074","EASF02":"006410904","EASF03":"000031147","EASF04":"000056160","EASF05":"000006118","EASF06":"000002385","EASF07":"000000000","EASF08":"000000000","EASF09":"000000000","EASF10":"000000000","EASD01":"008319162","EASD02":"012892496","EASD03":"002755583","EASD04":"007460547","EAIT":"006501687","ERQ1":"002422447","ERQ2":"001097136","ERQ3":"002453630","ERQ4":"009911987","IRMS1":"000","IRMS2":"001","IRMS3":"001","URMS1":"236","URMS2":"239","URMS3":"236","PREF":"09","PCOUP":"09","SINSTS":"00473","SINSTS1":"00099","SINSTS2":"00229","SINSTS3":"00145","SMAXSN":"H240213064656 03112","SMAXSN1":"H240213004001 02003","SMAXSN2":"H240213055914 01084","SMAXSN3":"H240213064656 02574","SMAXSN-1":"H240212234008 03888","SMAXSN1-1":"H240212233916 02003","SMAXSN2-1":"H240213000000 01224","SMAXSN3-1":"H240212055736 02516","SINSTI":"00000","SMAXIN":"H240213000000 00000","SMAXIN-1":"H240212123212 01039","CCASN":"H240213083000 00238","CCASN-1":"H240213080000 01882","SMAXIN":"H240213000000 00000","CCASN-1":"H240213080000 01882","CCAIN":"H240213083000 00000","CCAIN-1":"H240213080000 00000","UMOY1":"H240213083000 238","UMOY2":"H240213083000 238","UMOY3":"H240213083000 237","STGE":"423ACD01","DPM1":"240213060000 00","FPM1":"240214060000 00","MSG1":"PAS DE MESSAGE","PRM":"19392908805874","RELAIS":"000","NTARF":"04","NJOURF":"00","NJOURF+1":"00","PJOURF+1":"00004001 06004002 22004001 NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE NONUTILE"}}
L

Denky D4 sur compteur PME/PMI - pas de trames

• • labu73

5

5
Posts

20
Views

L

Merci @Nicolas-Bernaerts ,

Je n'ai pas les compétences électroniques pour réaliser cette opération et espère donc quelques suggestions de la communauté ou de @Charles pour adapter le signal en entrée du Denky.

Sinon, est ce que je peux trouver un composant Tasmota avec entrée RS232 acceptant Teleinfo?

Bonne Journée,

Laurent
L

interroger teleinfo tasmota via commandes http ?

• • lebphi

11

11
Posts

4.0k
Views

N

@lebphi vous avez pu tester la nouvelle version ?
B

Denky V4 mesure différente de celle d'EDF et d'un TIC DYI

• • bdabda55

5

5
Posts

12.1k
Views

C

@Delio la version de @Nicolas-Bernaerts les remonte aussi, direct dans HA mais comme toi je n'utilises pas les today et yesterday de Tasmota. En revanche le gros avantage c'est qu'il te calcule la puissance active et le cos phi que tu n'as pas en natif.


tu as quand même un paquet d'options que tu ne trouveras pas ailleurs

M

Piloter un relai avec cette board

• • mikebzh44

4

4
Posts

133
Views

C

@mikebzh44 merci 😊
M

Compilation ESP Home pour avoir la TIC sur cet ESP

• • mikebzh44

9

9
Posts

669
Views

M

@Charles Top, merci !
T

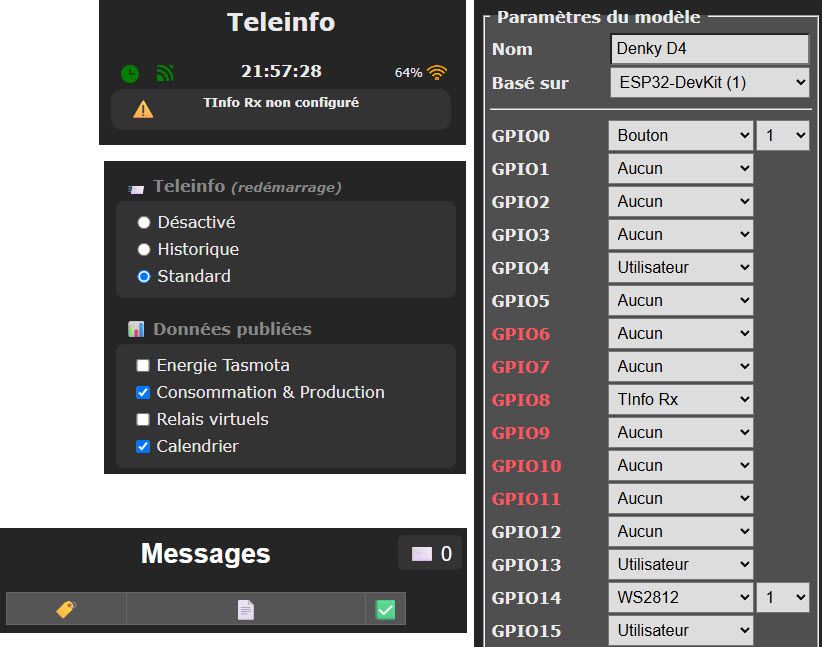

UART RX GPIO8

• • Thierry13

4

4
Posts

548
Views

C

@bdabda55

regarde ici tu devrais trouver ton bonheur

https://community.ch2i.eu/topic/1501/compilation-esp-home-pour-avoir-la-tic-sur-cet-esp/2
M

Denky D4

• • M1larepa

2

2
Posts

725
Views

C

@M1larepa as tu essayé juste de lui faire un reset pour le redémarrer ?
B

Display Denky D4

• • brugur

3

3
Posts

501
Views

B

@Charles Merci beaucoup, je vais regarder ça de plus près.
M

Question de bases pour précommande

• • Mirabeau

9

9
Posts

438
Views

C

@Nicolas-Bernaerts homey c'est juste une tuerie car l'UX est top et tu fais des scenarios en 2/2 depuis sont smartphone et tu peux faire des advanced flow
https://homey.app/fr-fr/advanced-flow/

Le hard ils utilisent tous à peut prêt la même chose donc c'est pas super différenciant en fait, le plus c'est l'interface, la leur est juste WAF certified 🙂

Si tu utilise des tasmota, avec l'appli tasmota MQTT c'est un bonheur tu ajoutes tes devices (depuis ton smart phone en 2s chrono), idem mes radiateurs tasmota version thermostat mqtt avec shelly 1PM pour mesure de consommation et plugins vthermo pour homey (on croirait un nest)


l'avantage du shelly pro (ESP32+BLE) c'est que tu peux associer un capteur BLE à que dalle qui fait ta sonde de temperature pour piloter le radiateur via tasmota, même pas besoin de box ou de cloud et ça c'est carrément canon pour faire du stand alone !!!!

J'ai poussé le vice dans ma capture le vthermo moyennise les capteurs de température pour avoir la valeur moyenne et piloter le radiateur 🙂
J

Câblage Denky-D4

• • Jérémie Leguay

10

10
Posts

780
Views

C

@radius7 Excellent, merci pour le retour très interessant 🙂
S

Denky-D4 accès aux GPIO user

• • Sacavoile

6

6
Posts

197
Views

N

@Sacavoile La section CAL donne d'ores et déjà ces informations :
lv = 3 : jour rouge hp = 1 : heure pleine
Une simple règle Berry devrait pouvoir le détecter et le gérer.
N

Problème de stabilité avec Berry

• • Nicolas Bernaerts

7

7
Posts

171
Views

C

@Nicolas-Bernaerts Au top merci 🙂
J

Denky D4 / Integration TASMOTA Homeassistant

• • jsapede

4

4
Posts

378
Views

J

@Nicolas-Bernaerts je vous ai repondu la bas aussi 🙂
T

14:33:13.536 RTE: Token - Private key missing

• • thierry51170

17

17
Posts

1.9k
Views

T

@Nicolas-Bernaerts Bonjour Nicolas Ok merci je vois cela
modification faite je te tiens au courant
délai de 5mm
Capture d'écran 2024-01-17 104458.png
M

Denky-D4 et Téléinfo et checksum

• • Micclfr

5

5
Posts

264
Views

S

Bonjour,
Maintenant que les fêtes sont passées je vais pouvoir apporter quelques éléments sur ce sujet.
En effet j'avais moi aussi énormément d'erreurs de checksum (60% des trames !) et j'ai galéré pour comprendre d'où cela venait.
J'utilise la version Tasmota de Nicolas Bernaerst et j'ai un linky triphasé (important pour la (suite)
En fait, pour voir s'il y avait des erreurs, j'accédais aux informations via l'interface web sur mon réseau local car très pratique pour voir les erreurs, avec 3 fenêtres (la principale qui affiche en temps réel le tableau de bord, la deuxième "message" avec le tableau de valeurs brutes et checksum du message TIC et la troisième avec la console qui permet de voir les trames en entier et les erreurs).
Et là, plus d'une trame sur 2 est en erreur de checksum sur un des paramètres lus.
Finalement, ma conclusion c'est que le problème vient de la charge de l'ESP32, trop d'informations remontées, surtout en triphasé. Quand j'ai modifié le niveau de debug de la console, sans affichage des trames, les erreurs ont beaucoup diminuées voir disparues et quand sur la console je ne mets que les erreurs, alors plus d'erreurs du tout ! Confirmé par le tableau des valeurs brutes (message) où toutes les valeurs sont bien remplies (quand il y avait des erreurs, les paramètres en erreur checksum ainsi que les suivants dans la trame ne sont pas renseignés et les lignes restent vides).
Bref il y avait des erreurs quand je regardais et il n'y en avait pas quand je ne regardais pas ...
T

Denky D4 + Tempo

• • Tostaky

21

21
Posts

863
Views

T

@Charles said in Denky D4 + Tempo:

@Tostaky said in Denky D4 + Tempo:

STGE = xBxxxxx => B = 1011 => aujourd'hui rouge (3), demain blanc (2).
L'interface affiche toujours rouge / rouge

je comprends pas j'ai testé le même code et aucun soucis

https://onlinegdb.com/_VnKGhRZ5
#include <stdio.h> #include <stdlib.h> #include <stdint.h> int main() { uint32_t status_register = strtol("9B3AD501", NULL, 16); printf("Status Register is 0x%08X\r\n", status_register); if (status_register >> 24) { char txt[32]; uint8_t sr = status_register >> 24; uint8_t val = sr & 0x03; if (val) { printf("Jour %s\r\n", val==1?"Bleu":val==2?"Blanc":"Rouge"); } val = (sr >> 2) & 0x03; if (val) { printf("Demain %s\r\n", val==1?"Bleu":val==2?"Blanc":"Rouge"); } val = (sr >> 4) & 0x03; if (val) { printf("Préavis pointe mobile %d\r\n", val); } val = (sr >> 6) & 0x03; if (val) { printf("Pointe mobile en cours %d\r\n", val); } } return 0; }
La sortie donne bien ça
Status Register is 0x9B3AD501 Jour Rouge Demain Blanc Préavis Pointe mobile 1 Pointe mobile En cours 2
peut être essayer cette 2eme méthode au cas ou (avec aussi le strtol changé en strtoul)
https://onlinegdb.com/ADbvc4273
#include <stdio.h> #include <stdlib.h> #include <stdint.h> int main() { uint32_t status_register = strtoul("9B3AD501", NULL, 16); printf("Status Register is 0x%08X\r\n", status_register); if (status_register >> 24) { char txt[32]; char coul[4][6] = { "----", "Bleu", "Blanc", "Rouge" }; uint8_t sr = status_register >> 24; uint8_t val = sr & 0x03; if (val) { printf("Jour %s\r\n", coul[val]); } val = (sr >> 2) & 0x03; if (val) { printf("Demain %s\r\n", coul[val]); } val = (sr >> 4) & 0x03; if (val) { printf("Préavis pointe mobile %d\r\n", val); } val = (sr >> 6) & 0x03; if (val) { printf("Pointe mobile en cours %d\r\n", val); } } return 0; return 0; }
qui donne la même chose mais codé différemment, t'as moyen de tester ?

Je n'ai pas modifié de code coté Denky car j'ai pris un firmware déjà compilé.
A la lecture du code, je suis 100% d'accord avec le fonctionnement.
Comme le script Berry accède à la valeur STGE et la décode correctement pour la transmettre à EmonCMS, j'en déduis que c'est quelque part entre la libteleinfo et l'affichage.

C'est plus à titre informatif que je fais remonter car j'utilise peu l'affichage
T

Denky D4 et installation

• • thierry51170

6

6
Posts

374
Views

T

@Charles
Bonjour Charles,
ok je vais regarder merci
